Impressively fast and sharp
Efficiently create high-resolution 4800 x 4800 dpi scans of your photos or documents in just 8 seconds, courtesy of Canon’s LiDE technology.

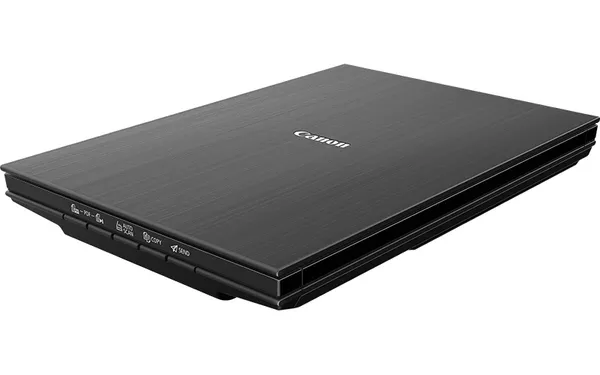

Space-saving design
Free valuable desk space with the upright scanning and storage option. The classy design of this compact scanner will adapt effortlessly to a home or office environment.
Improved accuracy

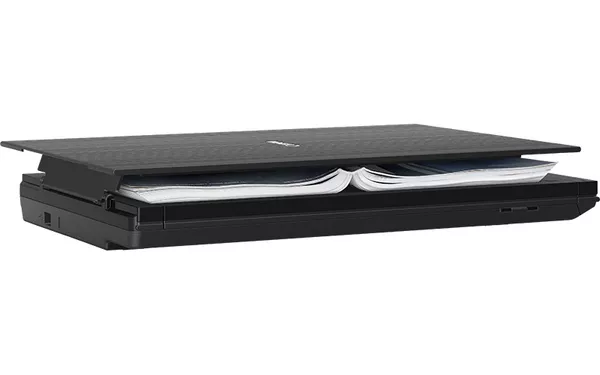

Produce and access highly accurate scans with a single button. Bulky documents up to 21mm thick can also be expertly scanned using the double hinge Z-Lid feature.
Easy and instant

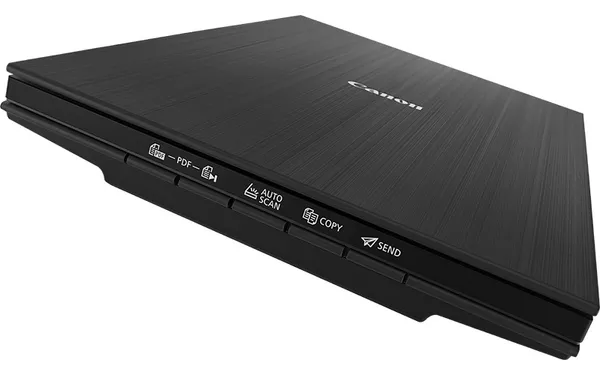

Work fast with the EZ buttons that allow you to instantly Auto Scan, copy, email, and produce PDFs, plus an additional fifth EZ button to complete multi-page PDFs.
Smart connectivity
Scan confidently through a convenient USB Type-C connection. Simply plug into a PC or laptop and scan in seconds, without relying on a power outlet.
Technical Specifications
Type Flatbed Scanner
Scanning element CIS
Light source 3-color (RGB) LED
Optical resolution 4800 x 4800dpi1
Selectable resolution 25 - 19200dpi2
Interface USB-Type C (USB 3.0 and 2.0 compatible)
Scanning gradation (colour) 48 bit input -> 48/24 bit output
Scanning gradation (greyscale) 16 bit input -> 8 bit output
Maximum Document Size A4 / Letter (216 x 297mm)
EZ-Scan Buttons 5 buttons (PDF x 2, AUTOSCAN, COPY, SEND)
Scanning speed (colour) (Reflective)
25.4msec/line (4800 dpi)
14.8msec/line (2400 dpi)
6.6msec/line (1200 dpi)
3.8msec/line (600 dpi)
1.7msec/line (300 dpi)
(greyscale, B&W)
(Reflective)
8.2msec/line (4800 dpi)
4.3msec/line (2400 dpi)
2.2msec/line (1200 dpi)
1.3msec/line (600 dpi)
1.7msec/line (300 dpi)
Scan speed (A4, 300dpi, Colour) Approx. 8 sec
Scan speed (4x6", 300dpi, Colour) Approx. 4 sec
Preview Speed Approx. 7 sec
Software Included Scan Gear for Win Scan Utility for Win
Power Supply Supplied via USB port
Power Consumption approx. 4.5W (in operation, maximum) approx. 0.3W (standby)
Dimensions 250 × 367 × 42 mm
Weight 1.7kg
Operating Temperature range 5 - 35 °C
Operating Humidity Range 10 - 90 %RH, without condensation formation
Supported Operating Systems Windows 10、Windows 8.1、Windows 7 SP1 Operation can only be guaranteed on a PC with pre-installed Windows 7 or later. OS X 10.11.6、macOS 10.12〜10.15, macOS 11 *
Minimum System Requirements Display: 1024 x 768 XGA
